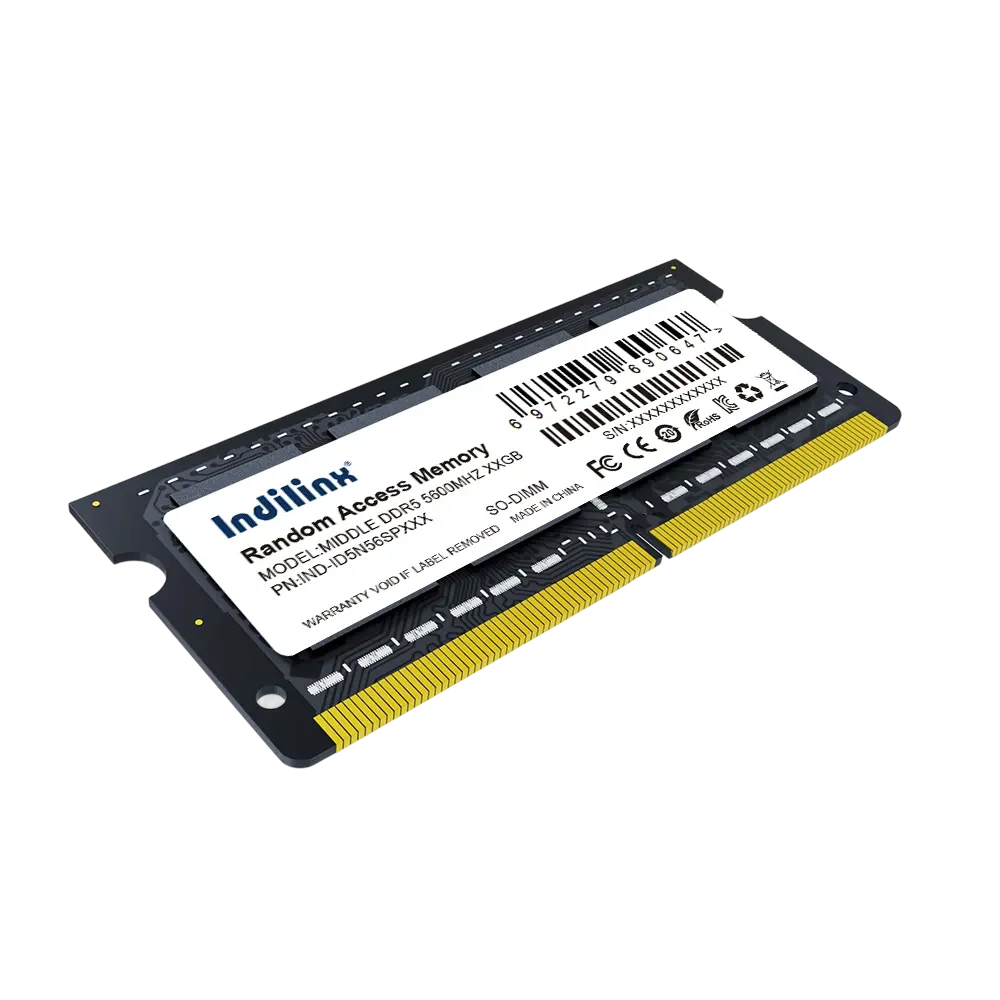

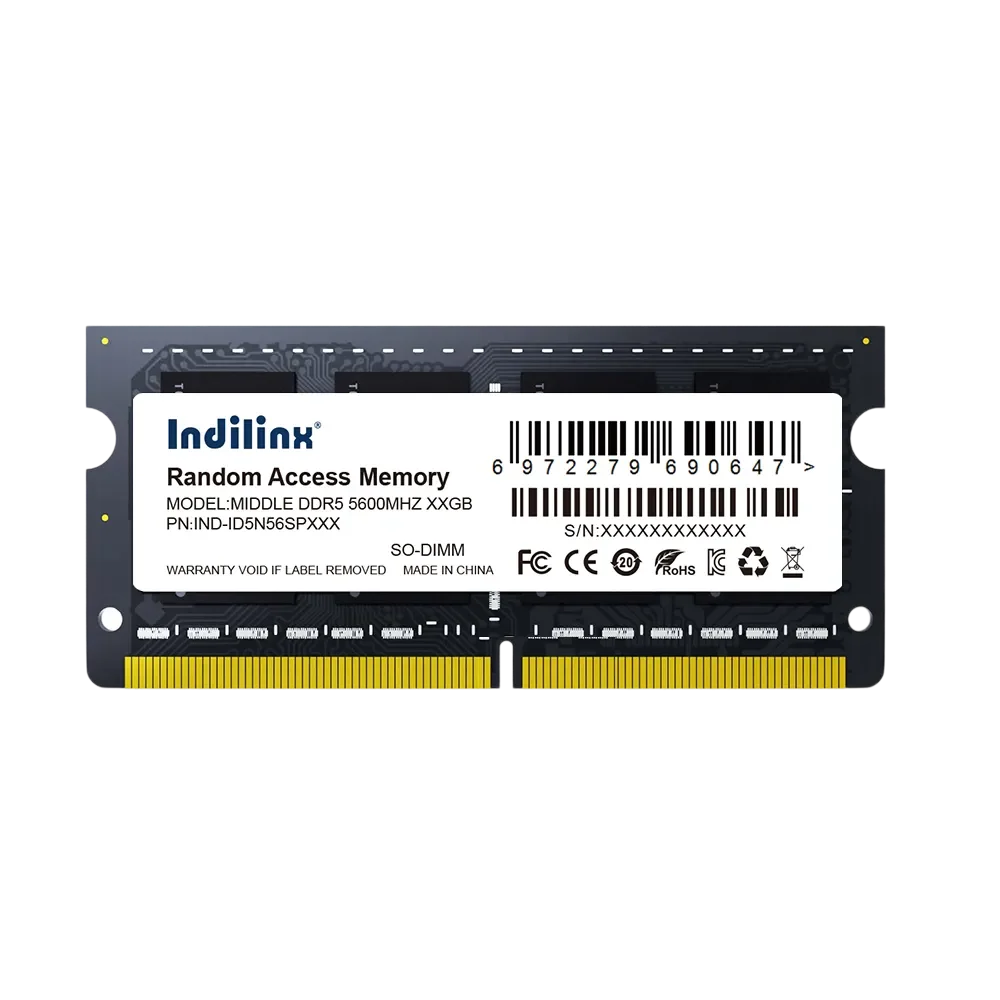

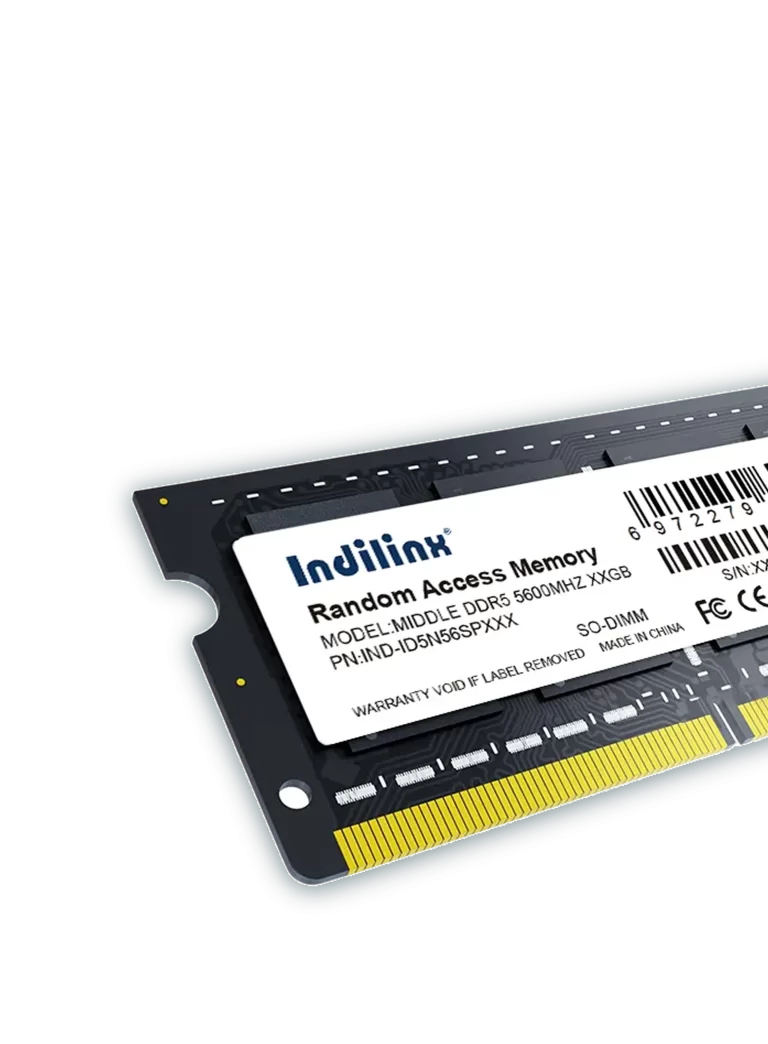

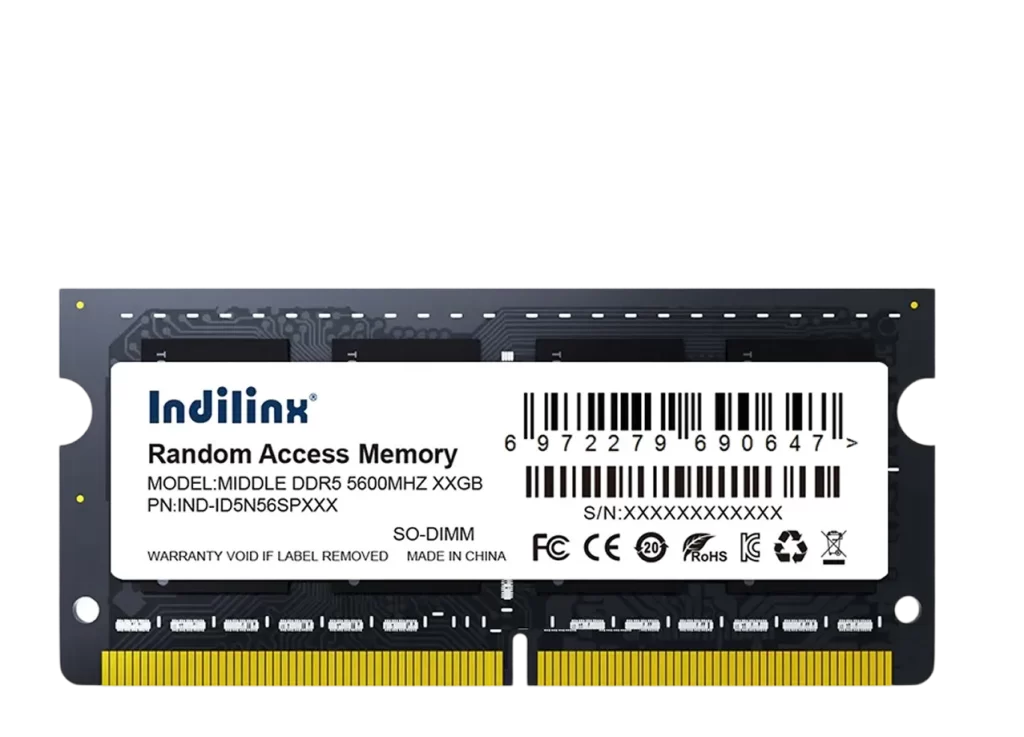

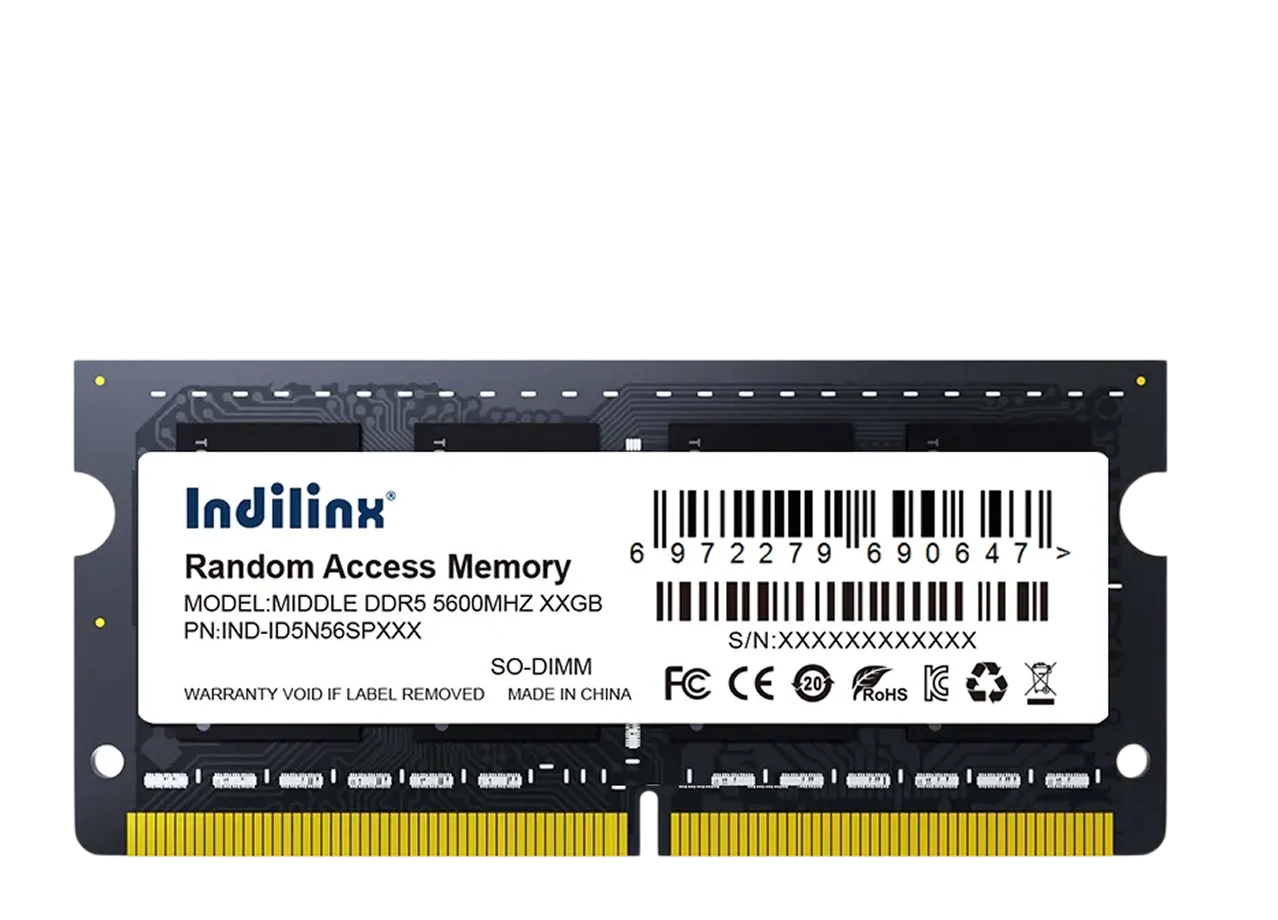

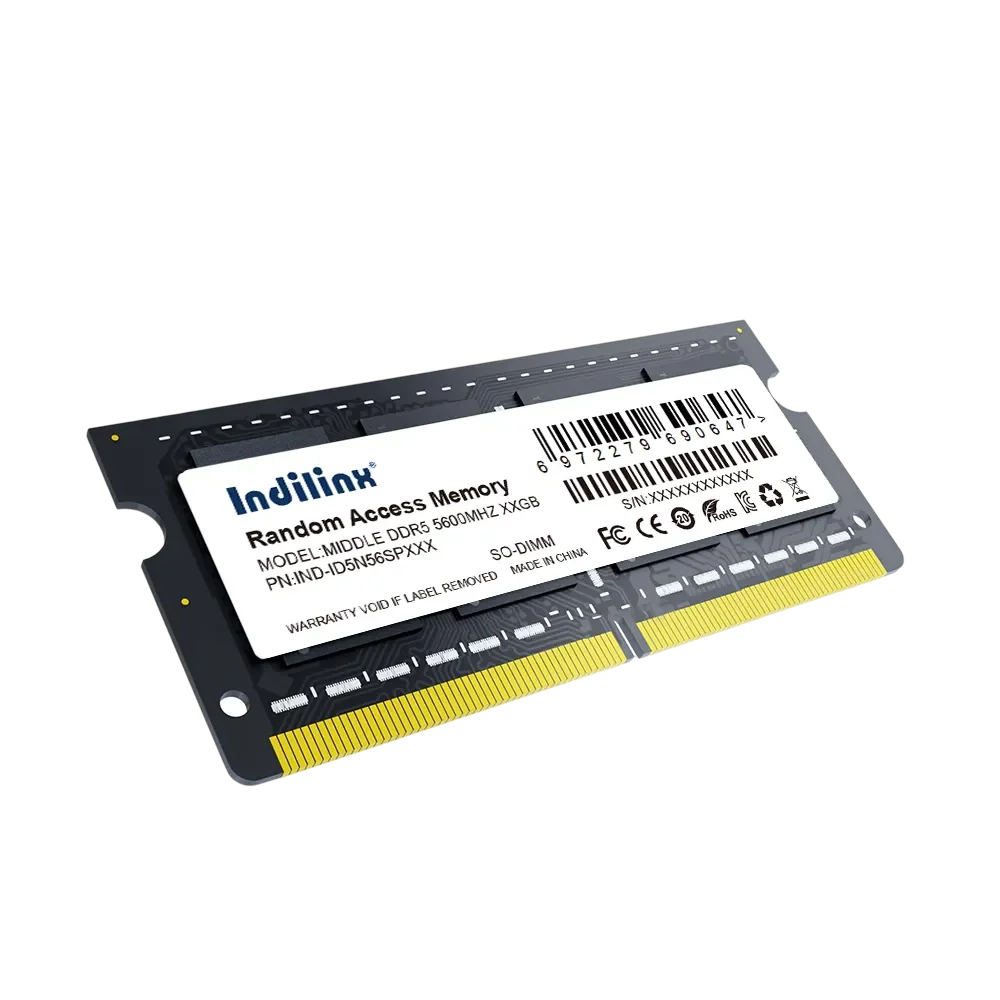

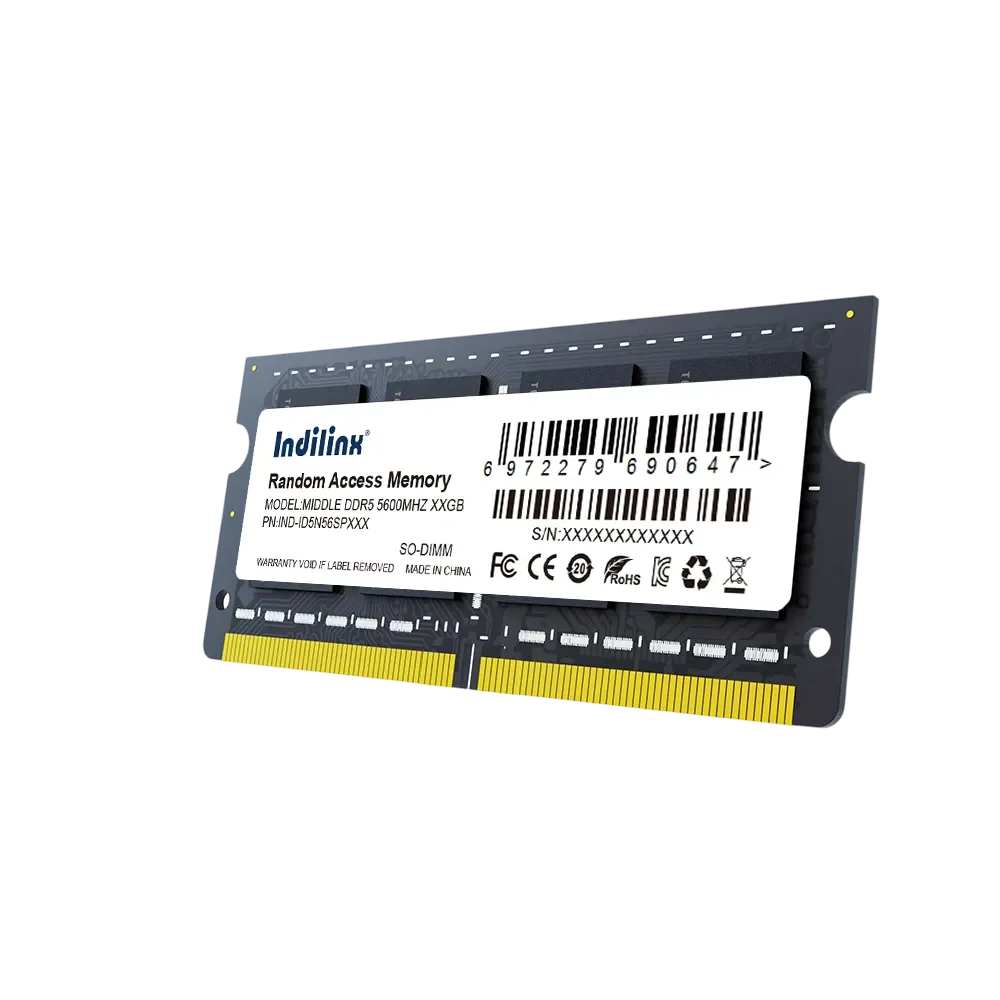

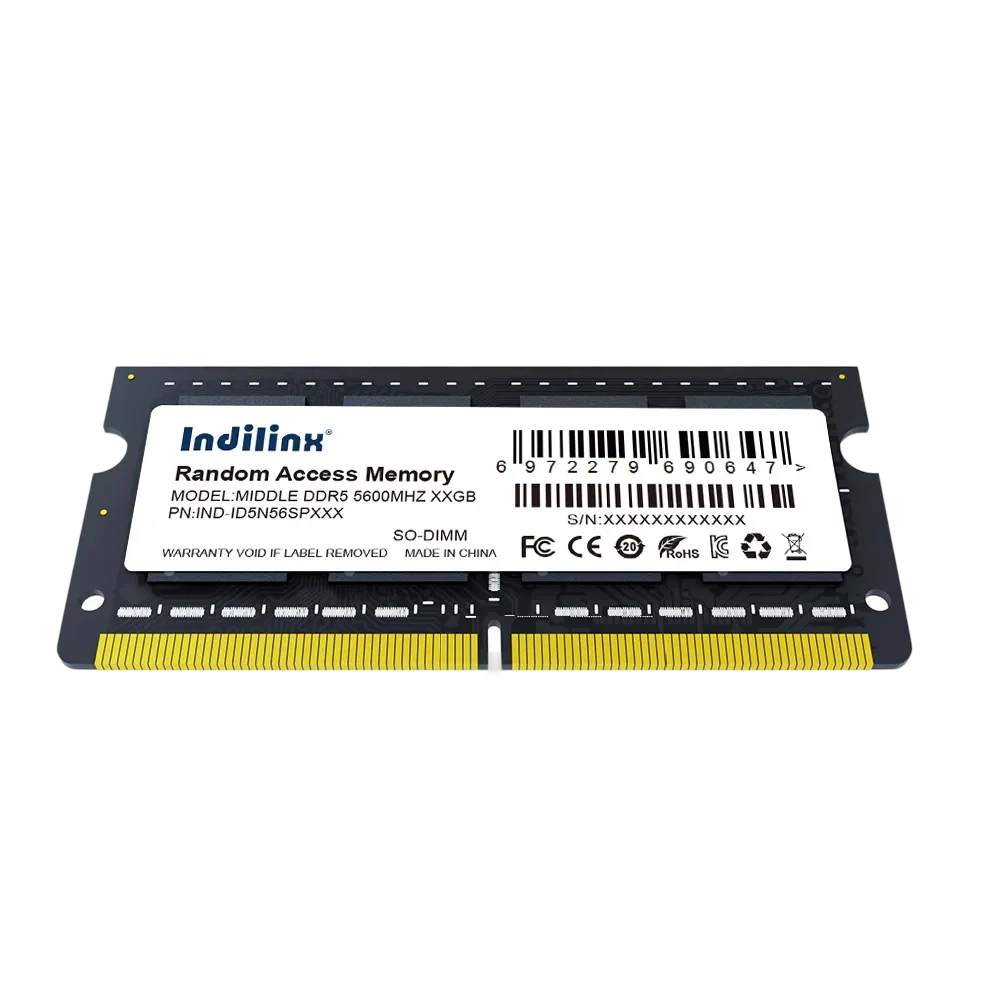

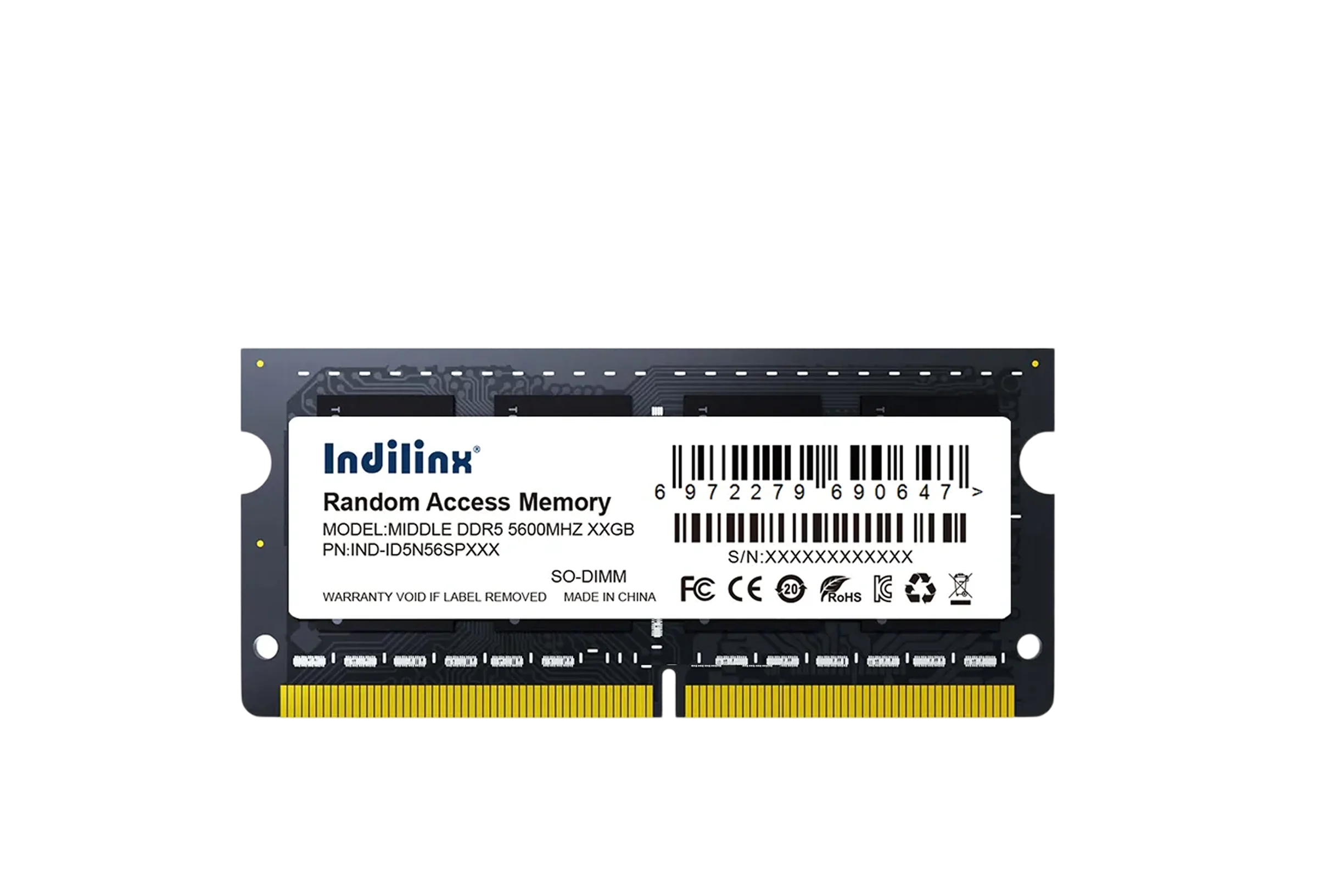

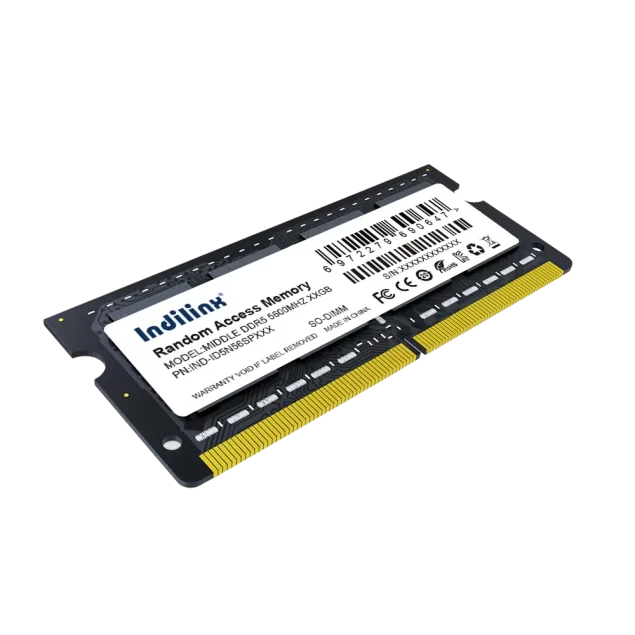

Rugged High-Performance DDR5 RAM SODIMM 8G/16G/32G
Designed for embedded systems, compact workstations, and industrial-grade computing platforms, this DDR5 SODIMM series (Model: IND-ID5N48SP) delivers high-density, low-profile memory performance in a resilient form factor. Built to endure extended temperature ranges, mechanical shock, and continuous operational loads, the modules feature enhanced thermal management and robust component construction to ensure data integrity and stable high-speed performance in space-constrained and demanding environments. Supporting capacities from 8GB to 32GB per module, the series is compatible with the latest mobile and embedded Intel and AMD platforms, offering a reliable memory solution for edge AI, automation, digital signage, and industrial IoT applications requiring both compact size and sustained throughput.
MIDDLE DDR5 SODIMM
Model No
High-Density Performance in Compact Form
Extended Temperature & Shock Resistance
High-Density Performance in Compact Form
Extended Temperature & Shock Resistance
DDR5 SODIMM Product Specifications
This advanced DDR5 Small Outline Dual In-line Memory Module (SODIMM) series is designed for the next generation of compact computing systems, offering exceptional performance and efficiency for laptops, mini-PCs, and industrial applications. The series leverages the latest DDR5 architecture to deliver significantly higher bandwidth, enhanced power management through integrated PMIC (Power Management Integrated Circuit), and improved data integrity with on-die ECC (Error Correcting Code). Each module undergoes rigorous testing for compatibility and stability across a wide range of Intel and AMD mobile platforms, ensuring seamless integration and reliable operation. With capacities ranging from 8GB to 32GB and speeds up to 6400MT/s, these SODIMMs are ideal for demanding workloads including content creation, data analysis, gaming, and AI-driven applications.
Product Specifications
Product Model
MIDDLE DDR5 SODIMM
Memory Type
DDR5 DRAM
Module Type
260-pin SODIMM
Available Capacities
8GB, 16GB, 32GB
Speed Grades
4800MT/s, 5600MT/s, 6400MT/s
Voltage
1.1V (Operating Voltage)
On-Die ECC
Supported
Power Management
IC (PMIC) Integrated
CAS Latency (CL)
38, 40, 42 (Speed Dependent)
Operating Temperature
-25°C to 85°C
Compatibility
Intel 12th Gen+ and AMD Ryzen 6000 Series+ Platforms
Warranty
Limited Lifetime Warranty
Core Performance of DDR5 SODIMM
HIGH-SPEED DATA TRANSFER
Integrated dual-channel architecture delivers exceptional bandwidth for seamless multitasking in compact systems.
EFFICIENT POWER MANAGEMENT
Integrated PMIC provides precise voltage regulation, reducing system power consumption in mobile applications..
ADVANCED DATA INTEGRITY
On-die ECC ensures reliable error correction for continuous operation in demanding computing environments.
COMPACT FORM FACTOR DESIGN
Space-optimized 260-pin SODIMM format enables seamless integration in slim and portable computing devices.
WIDE PLATFORM COMPATIBILITY
Fully compatible with modern Intel and AMD mobile platforms for flexible system integration options.
EXTENDED TEMPERATURE RANGE
Designed to operate reliably across industrial temperature ranges for diverse application environments.
OPTIMIZED THERMAL PERFORMANCE
Advanced heat dissipation design ensures stable operation in thermally constrained system configurations.
HIGH-DENSITY CAPACITY OPTIONS
Supports up to 32GB per module to meet growing memory demands in compact computing solutions.
High-Frequency Operation for Enhanced Responsiveness
Indilinx-DDR5 SODIMM modules deliver significantly higher data transfer rates compared to previous generations, enabling smoother multitasking and faster application loading. This increased frequency supports advanced computing needs in compact systems, reducing latency and boosting overall system agility for demanding professional and creative workflows.
On-Die ECC for Improved Data Integrity
Built-in error correction within each module ensures reliable operation under continuous use, minimizing data corruption and system instability. This feature is critical for applications requiring high uptime and accuracy, providing an added layer of protection without compromising speed or efficiency.
Power Efficiency
Lower operating voltage reduces overall energy consumption.
Dual-Channel Subarchitecture
Enhances parallel data processing capability.
Installation of DDR5 SODIMM
Upgrading or installing Indilinx-DDR5 SODIMM memory is a straightforward process designed for user accessibility. By ensuring the system is powered off and unplugged, you can safely access the memory slots, typically located on the underside of laptops or within compact desktops. Aligning the module’s notch with the slot’s key and applying firm, even pressure until the side clips click into place secures the connection. A final power-on verifies successful installation and system recognition of the new memory.
Install in a Standard Desktop PC
Instant Media Playback
This is the most common method. After powering down the device and removing the battery (if removable), unscrew and carefully detach the bottom panel. The SODIMM slots are then directly accessible on the motherboard. Handle the module by its edges, align it correctly at a 30-degree angle, press down firmly until it seats flat, and the retaining clips snap into place automatically.
Keyboard or Top Panel Removal
Instant Media Playback
Some ultra-thin or convertible laptops require removing the keyboard or top assembly (around the keyboard and trackpad) to reach internal components. This method involves carefully prying up the keyboard bezel or unscrewing the top panel from underneath after base panel removal. Extreme caution is needed to avoid damaging delicate ribbon cables connecting the keyboard and touchpad during this process.
Dedicated Memory Compartment
Instant Media Playback
Certain business-oriented or larger laptops feature a dedicated, small service door on the bottom chassis specifically for memory and storage upgrades. This convenient design allows access to one or both SODIMM slots by removing just one or two screws, eliminating the need to open the entire bottom panel and significantly simplifying the upgrade process.
DDR5 SODIMM Technical Support
We provide comprehensive technical support for our Indilinx-DDR5 SODIMM memory modules, ensuring reliable performance and customer peace of mind. Our dedicated team and structured services cover everything from initial compatibility verification to long-term warranty assistance, backed by a commitment to continuous product improvement.
Rigorous Quality Tracking
Each memory module batch is meticulously logged, enabling precise traceability from production through to end-user delivery.
Dedicated Support Channel
Access expert technical assistance for installation guidance, troubleshooting, and performance optimization through our dedicated support portal.
